UL2405 多芯屏蔽线
上一个：UL1120 多芯屏蔽线下一个：UL1056 PVC电子线

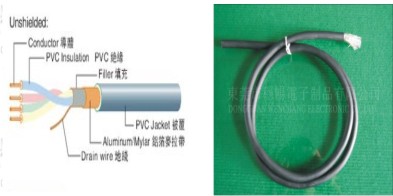

| Product Description: | |||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | |||||||||
| ■PVC insulation. | |||||||||
| ■PVC jacketed. | |||||||||
| ■Tinned or bare copper wire spiral or braid shield. | |||||||||
| ■Rated temperature:80℃. Rated voltage:300Volts. | |||||||||
| ■Passes UL VW-1&CSA FT1 vertical flamt test. | |||||||||
| 说明： | |||||||||
| ■导体使用单股或绞线裸铜或镀锡铜. | |||||||||
| ■PVC绝缘. | |||||||||
| ■PVC被覆. | |||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽. | |||||||||
| ■额定温度：80℃ 额定电压：300Volts. | |||||||||
| ■可通过UL VW-1 及 CSA FT1 ，垂直燃烧测试. | |||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | |||||||||
| Applications: | |||||||||
| ■For internal wiring of computer,audio&video equipment. | |||||||||
| 应用： | |||||||||
| ■用于电脑及视听设备内部连线. | |||||||||
| UL Style& CSA Type | Cores 芯数 |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Nom.Dia | Spiral shield 缠绕隔离 |
Jacket Thickness 被覆厚度 |
Overall Dimeter 完成外径 |
Conductor Resistance at 20℃导体电阻 |
|
| 线号 | 线数/线径 | ||||||||
| AWG | No/mm | mm | mm | NO/mm | mm | mm | Ω/KM | ||
| UL2405 CSA （Stranded) 绞线 |
2C | 30 | 7/0.102 | 0.41 | 1.12 | 56/0.12 | 0.45 | 3.40 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | 60/0.12 | 0.45 | 3.60 | 239.00 | ||
| 26 | 7/0.16 | 0.43 | 1.40 | 65/0.12 | 0.45 | 3.80 | 150.00 | ||
| 24 | 11/0.16 | 0.41 | 1.43 | 71/0.12 | 0.45 | 4.00 | 94.20 | ||
| 22 | 17/0.16 | 0.43 | 1.58 | 78/0.12 | 0.45 | 4.30 | 59.40 | ||
| 20 | 21/0.178 | 0.41 | 1.76 | 88/0.12 | 0.45 | 4.70 | 36.70 | ||
| 18 | 34/0.178 | 0.41 | 2.00 | 99/0.12 | 0.45 | 5.20 | 23.20 | ||
| 16 | 26/0.25 | 0.41 | 2.40 | 63/0.10 | 0.35 | 5.80 | 14.60 | ||
| UL2405 CSA （Stranded) 绞线 |
3C | 30 | 7/0.102 | 0.41 | 1.12 | 63/0.12 | 0.45 | 3.60 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | 68/0.12 | 0.45 | 3.80 | 239.00 | ||
| 26 | 7/0.16 | 0.41 | 1.30 | 73/0.12 | 0.45 | 4.00 | 150.00 | ||
| 24 | 11/0.16 | 0.43 | 1.50 | 80/0.12 | 0.45 | 4.50 | 94.20 | ||
| 22 | 17/0.16 | 0.41 | 1.58 | 89/0.12 | 0.45 | 4.60 | 59.40 | ||
| 20 | 21/0.178 | 0.41 | 1.76 | 99/0.12 | 0.45 | 5.00 | 36.70 | ||
| 18 | 34/0.178 | 0.41 | 2.00 | 113/0.12 | 0.45 | 5.50 | 23.20 | ||
| UL2405 CSA （Stranded) 绞线 |
4C | 30 | 7/0.102 | 0.41 | 1.12 | 71/0.12 | 0.45 | 3.90 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | 76/0.12 | 0.45 | 4.10 | 239.00 | ||
| 26 | 7/0.16 | 0.41 | 1.30 | 82/0.12 | 0.45 | 4.30 | 150.00 | ||
| 24 | 11/0.16 | 0.41 | 1.43 | 90/0.12 | 0.45 | 4.60 | 94.20 | ||
| 22 | 17/0.16 | 0.41 | 1.58 | 100/0.12 | 0.45 | 5.00 | 59.40 | ||
| 20 | 21/0.178 | 0.41 | 1.76 | 111/0.12 | 0.45 | 5.40 | 36.70 | ||
| UL2405 CSA （Stranded) 绞线 |
5C | 30 | 7/0.102 | 0.41 | 1.12 | 79/0.12 | 0.45 | 4.20 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | 85/0.12 | 0.45 | 4.40 | 239.00 | ||
| 26 | 7/0.16 | 0.41 | 1.30 | 92/0.12 | 0.45 | 4.70 | 150.00 | ||
| 24 | 11/0.16 | 0.41 | 1.43 | 100/0.12 | 0.45 | 5.00 | 94.20 | ||
| 22 | 17/0.16 | 0.41 | 1.58 | 112/0.12 | 0.45 | 5.50 | 59.40 | ||
| UL2405 CSA （Stranded) 绞线 |
6C | 30 | 7/0.102 | 0.41 | 1.12 | 88/0.12 | 0.45 | 4.50 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | 94/0.12 | 0.45 | 4.80 | 239.00 | ||
| 26 | 7/0.16 | 0.41 | 1.30 | 102/0.12 | 0.45 | 5.10 | 150.00 | ||
| 24 | 11/0.16 | 0.41 | 1.43 | 112/0.12 | 0.45 | 5.50 | 94.20 | ||
| 以上线材数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权规稳畅电子制品有限公司所有 | |||||||||
