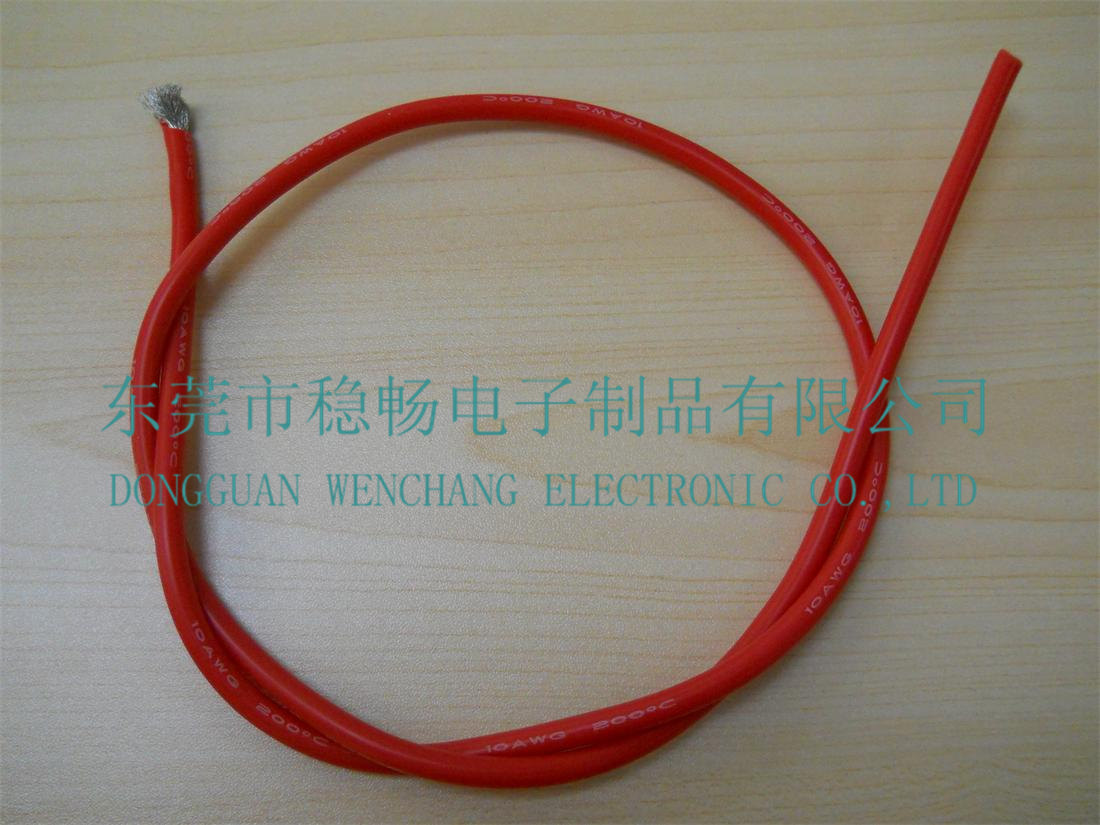

UL3239高温硅胶电子线
上一个：非标高温硅胶电子线下一个：UL3070高温硅胶编织线
| Product Description: | Applications: | |||||||||||||||||||
| ■Conductor：28-16AWG | ■Apply to Household appliance、lumination&Lighting Metallurgy&Headlamp、 | |||||||||||||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | electric machines、tempurature sensor、Military series、Metallurgy | |||||||||||||||||||
| ■Silicone Rubber insulation | Chemical series、Motor cars&Ships、Electrical installation | |||||||||||||||||||
| ■Rated temperature:200℃.Rated voltage:3K，6K，10K，20K，30K,40K,50,60Kvolts | ||||||||||||||||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | 应用： | |||||||||||||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | ■适用于家用电器、照明灯具、电子设备、温度传感器、航天、航空、军工产品、 | |||||||||||||||||||
| ■Top coated conductor is available | 冶金化工、汽车船船、电力安装等连接线。 | |||||||||||||||||||
| 说明： | Construction: | |||||||||||||||||||
| ■导体：28-16AWG | 构造： | |||||||||||||||||||
| ■导体使用单股或绞线裸铜或镀锡铜 | ||||||||||||||||||||
| ■硅橡胶绝缘. | ||||||||||||||||||||
| ■额定温度：200℃额定电压：3K，6K，10K，20K，30,40,50,60KVolts | ||||||||||||||||||||
| ■使用标准厚度，易剥，截断容易。 | ||||||||||||||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | ||||||||||||||||||||
| ■可使用先绞后镀（TC）为导体 | ||||||||||||||||||||
| UL Style& Cul Type | Conductor | Insulation | Unit Length(M) |
Conductor Resistance at 20℃ |
||||||||||||||||
| 3000V | 6000V | 10000V | 20000V | 30000V | 40000V | 50000V | 60000V | |||||||||||||
| AWG | No/mm | Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
Insulation Thickness |
Overall Diameter |
|||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | M/Coil | Ω/KM | |||
| UL3239 CUL AWM I A/B （Stranded) |
28 | 7/0.127 | 0.50 | 1.37 | 0.70 | 1.77 | 1.00 | 2.37 | 1.30 | 2.97 | 1.70 | 3.77 | / | / | / | / | / | / | 305 | 239 |
| 26 | 7/0.16 | 0.50 | 1.49 | 0.70 | 1.89 | 1.00 | 2.49 | 1.30 | 3.09 | 1.70 | 3.89 | / | / | / | / | / | / | 305 | 150 | |
| 24 | 7/0.20 | 0.50 | 1.60 | 0.70 | 2.00 | 1.00 | 2.60 | 1.30 | 3.20 | 1.70 | 4.00 | 2.12 | 4.85 | / | / | / | / | 305 | 94.2 | |
| 22 | 7/0.25 | 0.50 | 1.76 | 0.70 | 2.14 | 1.00 | 2.76 | 1.30 | 3.36 | 1.70 | 4.16 | 2.12 | 5.00 | 2.51 | 5.80 | 3.11 | 7.00 | 305 | 59.4 | |
| 20 | 7/0.31 | 0.50 | 1.91 | 0.70 | 2.31 | 1.00 | 2.91 | 1.30 | 3.51 | 1.70 | 4.31 | 2.12 | 5.20 | 2.51 | 6.00 | 3.11 | 7.20 | 305 | 36.7 | |
| 18 | 7/0.39 | 0.50 | 2.17 | 0.70 | 2.57 | 1.00 | 3.17 | 1.30 | 3.77 | 1.70 | 4.57 | 2.12 | 5.43 | 2.51 | 6.23 | 3.11 | 7.43 | 305 | 23.2 | |
| 16 | 7/0.50 | 0.50 | 2.50 | 0.70 | 2.90 | 1.00 | 3.50 | 1.30 | 4.10 | 1.70 | 4.90 | 2.12 | 5.95 | 2.51 | 6.85 | 3.11 | 8.05 | 305 | 14.60 | |
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有。 | ||||||||||||||||||||
