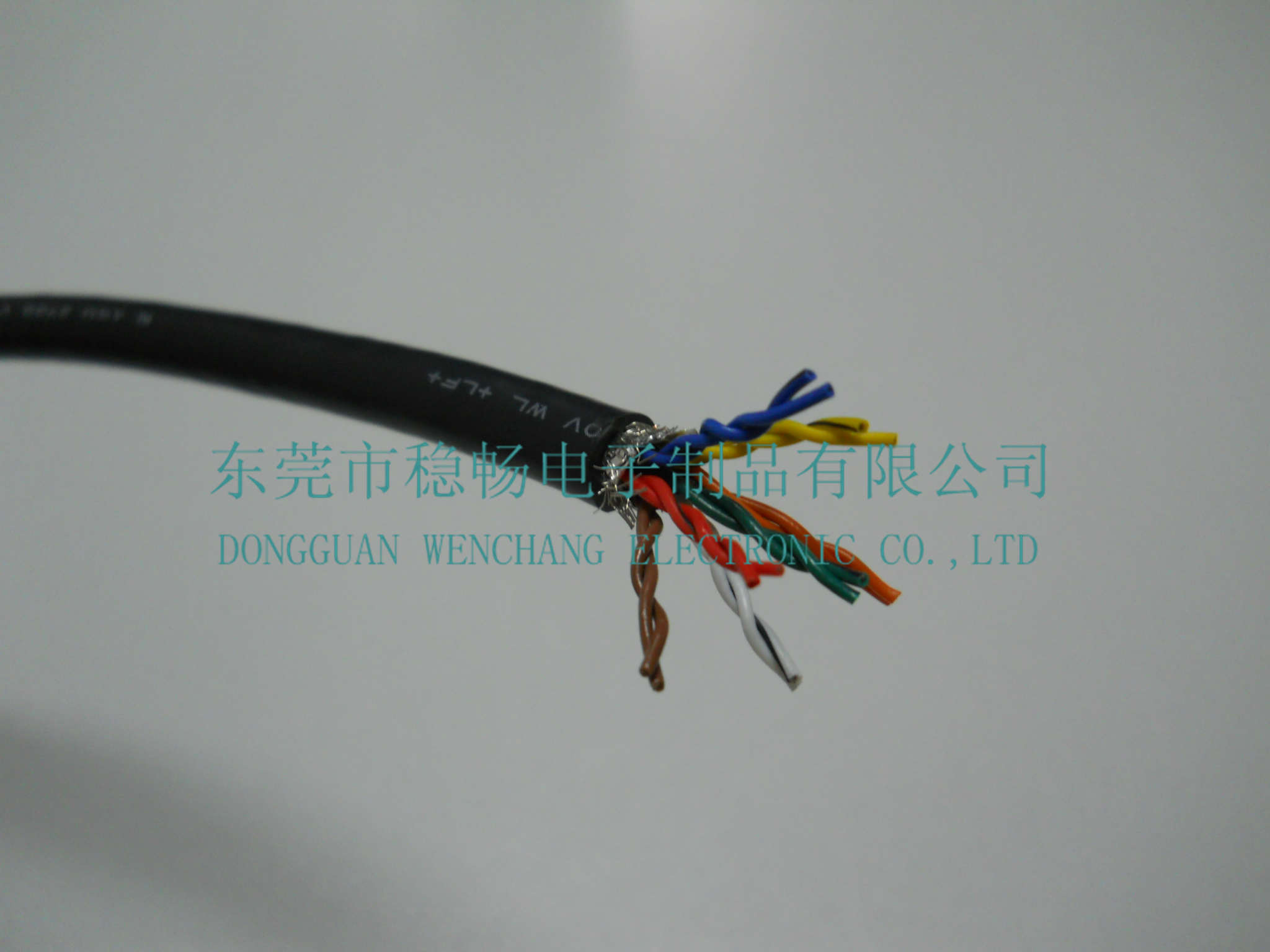

UL20057 TPE多芯屏蔽线
| Product Description: | Applications: | ||||||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■Internal Wiring of Double-insulated Electric | ||||||||||||
| ■TPE insulation | Gardening Appliances, Lawn Mowers,or Snow Removers. | ||||||||||||
| ■TPE jacketed | " Polarity identification may be omitted | ||||||||||||
| ■Tinned or bare copper wire spiral or braid shield | 应用： | ||||||||||||
| ■Rated temperature:105℃.Rated voltage:300Volts | ■双重绝缘电动圆艺器具，割草机，或雪去除内部布线，极性识别可以省略。 | ||||||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | Construction: | ||||||||||||
| 说明： | 构造： | ||||||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | |||||||||||||
| ■TPE绝缘 | |||||||||||||
| ■TPE被覆 | |||||||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽 | |||||||||||||
| ■额定温度：105℃额定电压：300Volts | |||||||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||||||||
| UL Style& CUL Type | Cores | Conductor | Insulation Thickness |
Nom.Dia | Shield Coverage | Jacket Thickness | Overall Diameter |
Conductor Resistance at 20℃ |
|||||
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||||||
| UL20057 CUL （Stranded) |
2C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 7.40 | 36.70 | ||||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 7.80 | 23.20 | ||||||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 8.40 | 14.60 | ||||||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 9.70 | 8.96 | ||||||
| UL20057 CUL （Stranded) |
3C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 7.80 | 36.70 | ||||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 8.40 | 23.20 | ||||||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 9.00 | 14.60 | ||||||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 10.00 | 8.96 | ||||||
| UL20057 CUL （Stranded) |
4C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 8.40 | 36.70 | ||||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 9.40 | 23.20 | ||||||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 10.00 | 14.60 | ||||||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 11.20 | 8.96 | ||||||
| UL20057 CUL （Stranded) |
5C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 9.00 | 36.70 | ||||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 10.20 | 23.20 | ||||||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 11.20 | 14.60 | ||||||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 12.20 | 8.96 | ||||||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有。 | |||||||||||||
